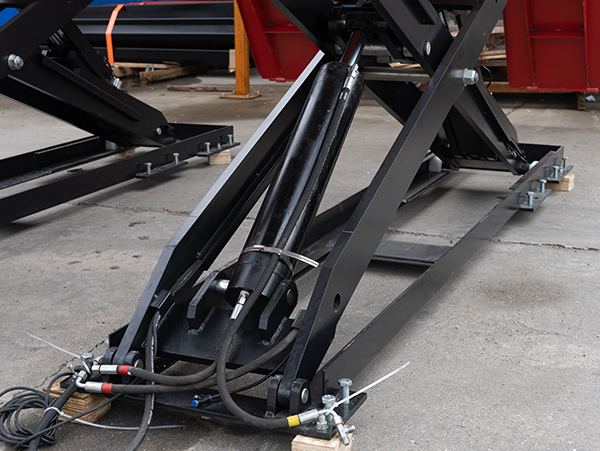

Super thin block shear lift

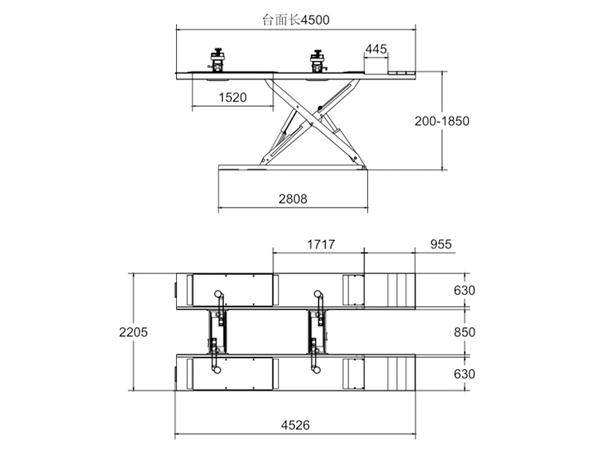

Product parameter

Lifting weight4000Kg
One lift height1800mm
Secondary lifting height470mm
Lower altitude210mm
Platform length4500mm
Platform width630mm
Intermediate distance850mm
Rise time37s
Voltage220v/380v/240v/415v
Power2.2kw
Machine weightBike agreement2100kg,Two-car contract2200kg


Packing size: 6 pieces for single car, 7 pieces for double car

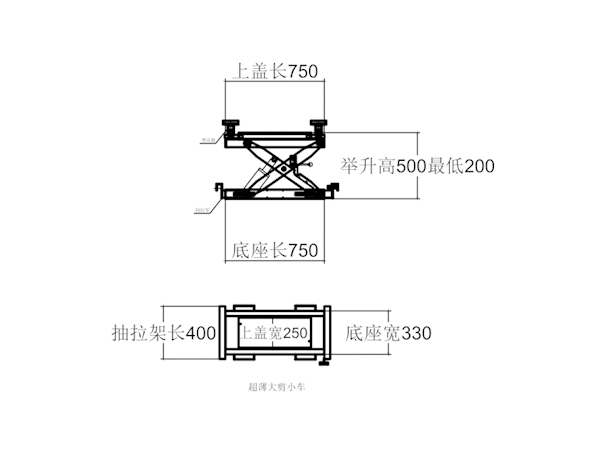

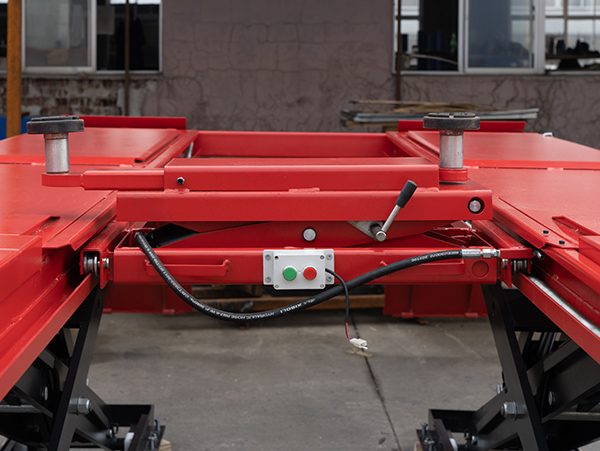

Trolley920mm*530mm*300mm 120kg
Transom2250mm*270mm*150mm  44kg
Top plate1350mm*600mm*230mm  69kg

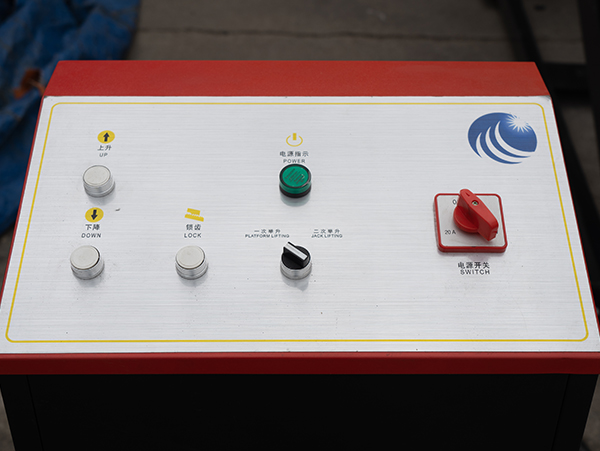

Control box540mm*400mm*1050mm  63kg
Table4700mm*750mm*300mm /2 Piece(Host machine 873kg Auxiliary engine 857kg)
Gross weight2026kg around,One is 2.71 cubic meters
